Voldam Portable Ventilator Axial Blower Extractor Fan

Voldam Portable Ventilator Axial Blower Extractor Fan

Regular price Rs.26,900.00
Regular price Sale price Rs.26,900.00
Sale Sold out
Size

Voldam Portable Ventilator Axial Blower Extractor Fan

Voldam Hi-Performance Portable Ventilator Axial Blower Extractor Fan help ventilate and is used along with ducts to circulate fresh air or remove unwanted air and it may also be used to maintain a suitable temperature for working. Made using durable steel housing with a orange finish. Excellent craft work and finish with 99.99% pure copper winding motor with supporter and handle flexible using. Rubber feet on base help minimize noise and reduce vibrations. The working ambient temperature range is 0-70 degrees Celsius.

This compact unit offer light weight and high output from an AC electric motor. Designed to give the greatest possible safety, performance and reliability even in the most demanding industrial and commercial applications. Housed within the high grade steel bodies and sickle bladed fans, designed to maximize airflow and pressure, which are driven by aluminum motors that keep weight to a minimum. Ideal for ventilation, extraction and fresh air supply as well as dust and fume extraction.

Voldam Portable Ventilator Fans are approved by respective authorities and has been developed by highly qualified professional engineers.

Product Features:
  • Superior Performance.
  • Top Class Quality.
  • Strong Air Pressure.
  • Rapidly circulate fresh air or remove unwanted air.
  • High Rotational Speed Speed and Air Volume.
  • Portable and Easy to install.
  • 99.99% Pure Copper Motor.
  • Impeller: Made of Aluminum casing Ally, 7 blades.
  • Ventilator Shell: made of strong galvanized sheet.
  • Tough steel construction.
  • Built in convenient carry handle and rubber feet.
  • Designed and Engineered by Highly Qualified Engineers.
Applications:

Oil Fields, Underground Engineering, Manufacturing Unit, Pharmaceuticals, Factories, Basements, Shipyards, Farms, Grain Storage, Tobacco, Tunnels, Automobile Manufacturing, Logistics, Hotel Kitchens, Shopping Malls, Mining, Steel Factory, Large and medium size Chemicals or Industrial Fields.

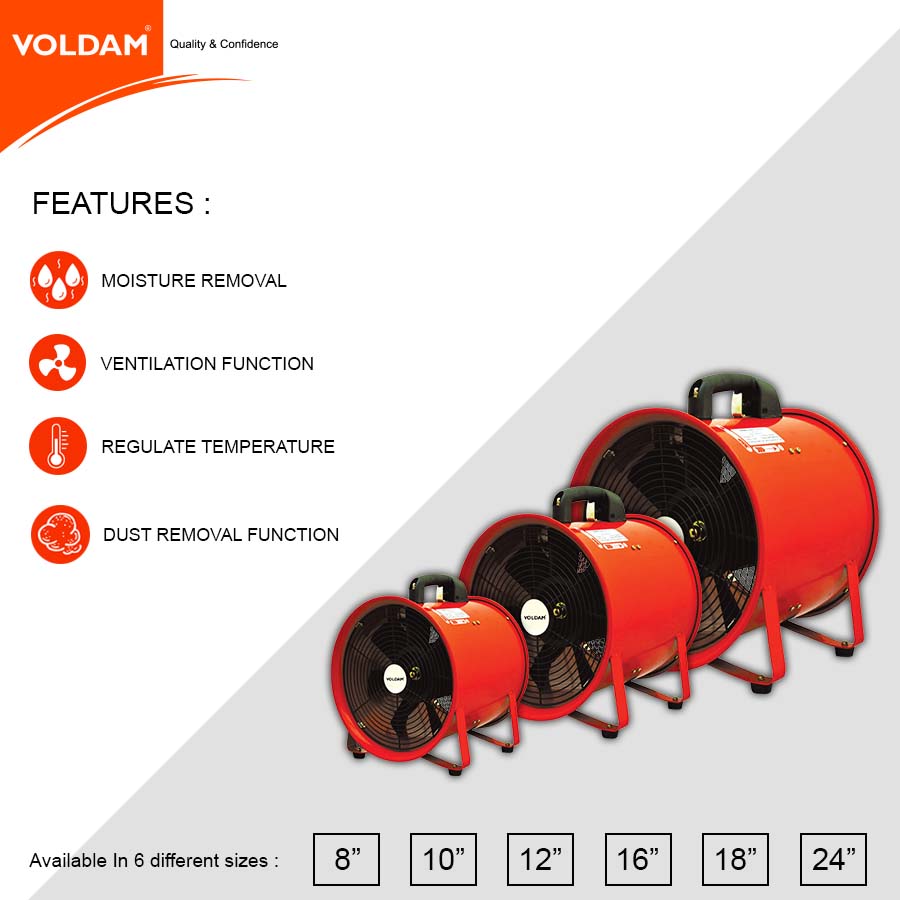

Available Sizes:

8″, 10″, 12″, 16″, 18″, 24″

Note: Duct Hose must purchase separate NOT INCLUDED! Picture shown as example

Built Strong:

– Rugged Construction and Materials: Built with a strong all-metal structure and black metal-coated grill for long-lasting use.

Copper Motor:

– Hi Quality 99.99% Motor for Long Life.

Built to Perform:

– Expected Performance, Day In and Day Out.
– This fan makes workplaces more comfortable by using aerodynamically balanced aluminum blades to deliver strong CFM of airflow, cooling large areas fast. This fans are designed for more regular use and applications to meet the needs of commercial applications.

Superior Shopping Experience

– Quick Assembly: Quick and simple do-it-yourself assembly. Should you ever need service or support, help is a phone call or e-mail away Voldam field-trained, dedicated team of experts is ready to help.


Technical Specs:
Model No.
Voltage (v)
Inputs (watts)
Air Flow (m3/h)
CFM
RPM
Noise (dB)
Static Pressure
Dia Size
Duct Size
PVF-8
220-240v
120 watts
1500
888
2800-2900
63
245
8″ dia
200 mm
PVF-10
220-240v
227 watts
2580
1527
2800-2900
68
294
10″ dia
250 mm
PVF-12
220-240v
305 watts
3900
2308
2800-2900
71
373
12″ dia
300 mm
PVF-16
220-240v
1100 watts
5760
3408
2800-2900
80
700
16″ dia
400 mm
PVF-18
220-240v
1700 watts
10728
6348
2800-2900
83
972
18″ dia
450 mm
PVF-24
380v
2200 (3 phase)
19590
11592
2800-2900
92
1100
24″ dia
600 mm

Warranty:

2 Years
